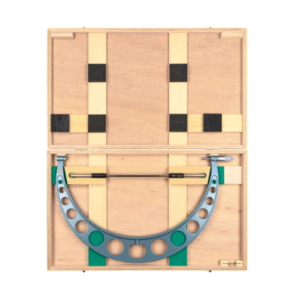

Panme Cơ Khí Đo Ngoài, 975-1000mm, 103-176
Liên hệ

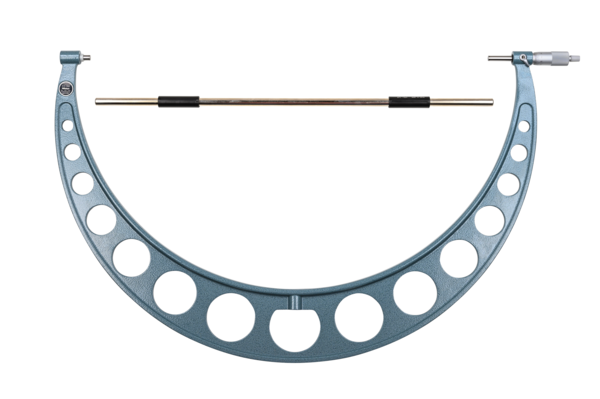

Outside Micrometer Economy Design
975-1000mm
Item number: 103-176
Panme Cơ Khí Đo Ngoài
Thiết kế nhẹ nhàng với khung hoàn thiện bằng men nung.
Được trang bị Ratchet Stop cho lực đo không đổi.
Description
Lightweight workshop design with baked-enamel-finished frame.
- Equipped with Ratchet Stop for constant measuring force.
Range: | 975 – 1000 mm |
Maximum Permissible Error J MPE: | ±9 µm; ±9 µm |
Parallelism: | (2+L/100) μm, L = max. range (mm); (2+L/100) μm, L = max. range (mm) |
Graduation: | 0,01 mm |
Measuring force: | 10 – 15 N |
Mass: | 8880 g |
Measuring face: | Carbide-tipped, micro-lap finish; Carbide-tipped, micro-lap finish |
Measuring spindle: | With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm; With spindle lock, ø6,35 mm (≤300 mm) ø 8 mm (>300 mm) , spindle pitch 0,5 mm |
Scale: | Thimble and sleeve satin chrome finish, ø21 mm; Thimble and sleeve satin chrome finish, ø21 mm |
Digital/Analog: | Analog |
Inch-Metric: | Metric |
Measuring spindle: | With spindle lock, ø8 mm , spindle pitch 0,5 mm; With spindle lock, ø8 mm , spindle pitch 0,5 mm |
Delivered: | Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range); Including box, setting standard (from 25 mm upward), key, certificate of inspection (0-50 mm range) |
L: | 1025; 1025 mm |
a: | 15 mm |
b: | 28 mm |
c: | 530 mm |
d: | 8 mm |
*VAT excluded. All products are intended to be sold to commercial customers.
Product illustrations are without obligation. Product descriptions, in particular any and all technical specifications, are only binding when explicitly agreed upon.
`
