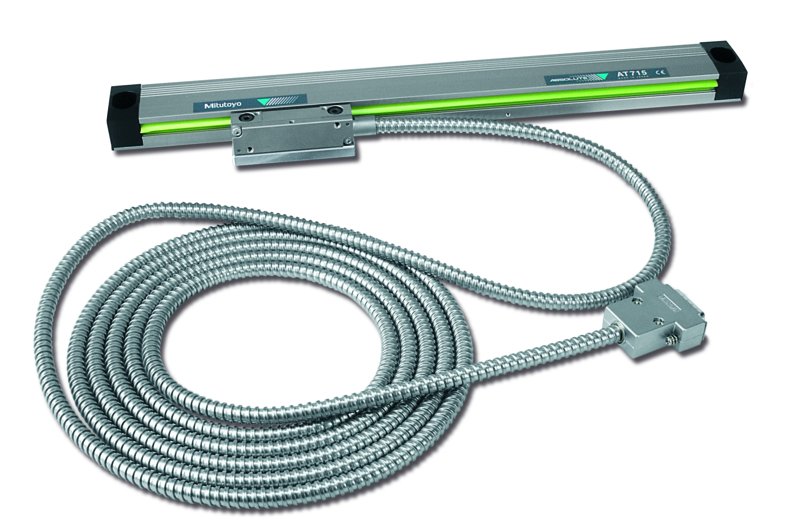

Thước Quang Linear Scale AT715 300 mm Mitutoyo, 539-866
Liên hệ
Linear Scale AT715
300 mm
Item number: 539-866
Thước quang này dựa trên nguyên lý cảm ứng điện từ, do đó cung cấp cho bạn mức IP bảo vệ môi trường cao, trong thời gian trung bình là không cần thiết sau mỗi lần bật nguồn.
Description
This linear scale is based on electro magnetic induction principle thus offering you high enviroment protection IP level , in the mean time reference point is not necessary after each power on.

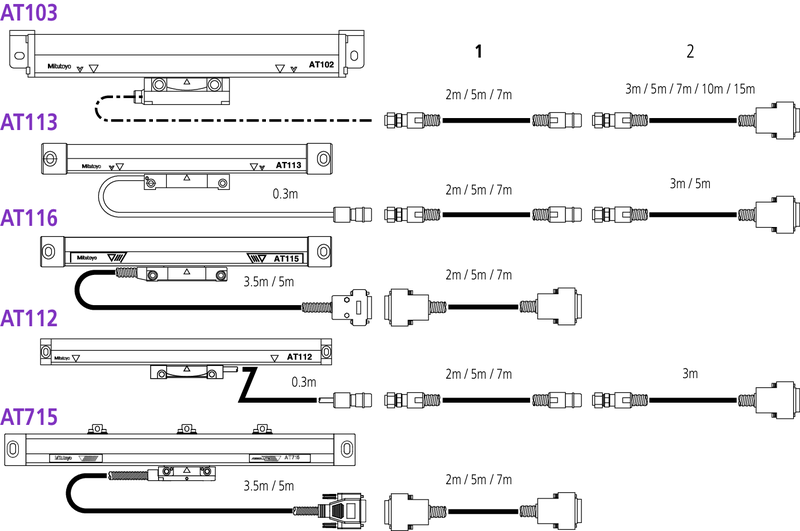

Cable length: | 7 m |
Effective range: | 3000 mm |
Delivered: | Mounting set |
Accuracy: | 100 to 500 mm ±5 µm 600 to 1800 mm ±7 µm 2000 to 3000 mm ±10 µm |
Operation temperature: | 0°C to 45°C |
Power supply: | 5V DC ± 10% |
Max. drive speed: | 50 m/min |
Signal period: | 20 µm |
Measuring method: | Electromagnetic induction system |
Resolution: | 0,001 / 0,005 (switchable via Counter) |

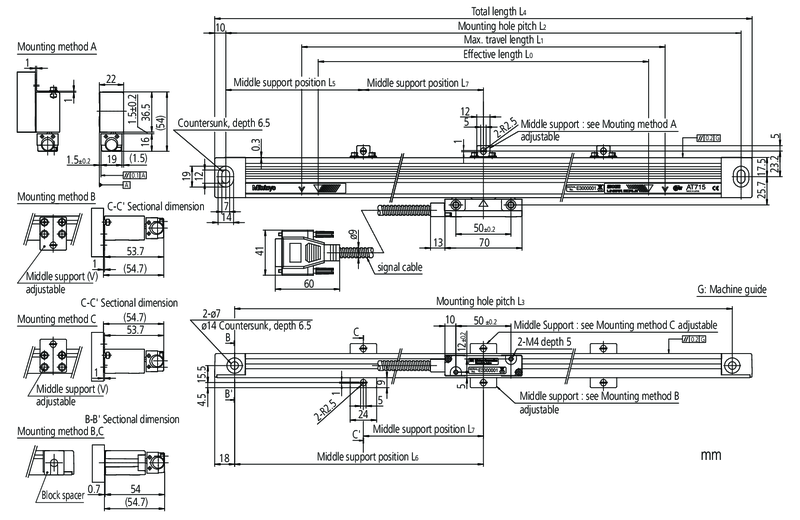

L1: | 3040 mm |
L2: | 3178 mm |
L3: | 3162 mm |
L4: | 3198 mm |
L5: | 529 mm |
L6: | 521 mm |
L7: | 530 mm |
*VAT excluded. All products are intended to be sold to commercial customers.
Product illustrations are without obligation. Product descriptions, in particular any and all technical specifications, are only binding when explicitly agreed upon.
`
